Open the 1.0 m training project and confirm its calculation unit and member scope.
CHECKSame section: two 1.2 m columns and one 1.0 m beam, with two matching training supports. This is not a whole-building quantity.
STRUCTURE CUBE / WORK GUIDE / V3.0.4
← Written tasksMaterial bills: configure, verify and deliver Excel
Verify 3.4 m, four washers and missing unit mass in an isolated exercise; change one dimension and verify 3.6 m.
Follow → Verify → Repeat independentlyV3.0.4 usage notes
V3.0.4: untouched default flexible-hanger plate recipes match nuts to the actual rod diameter and retain upper/lower sets per crossing. Explicit custom recipes are not rewritten. For a mismatch, check rod diameter, adopted node recipe and usage per body, then regenerate.

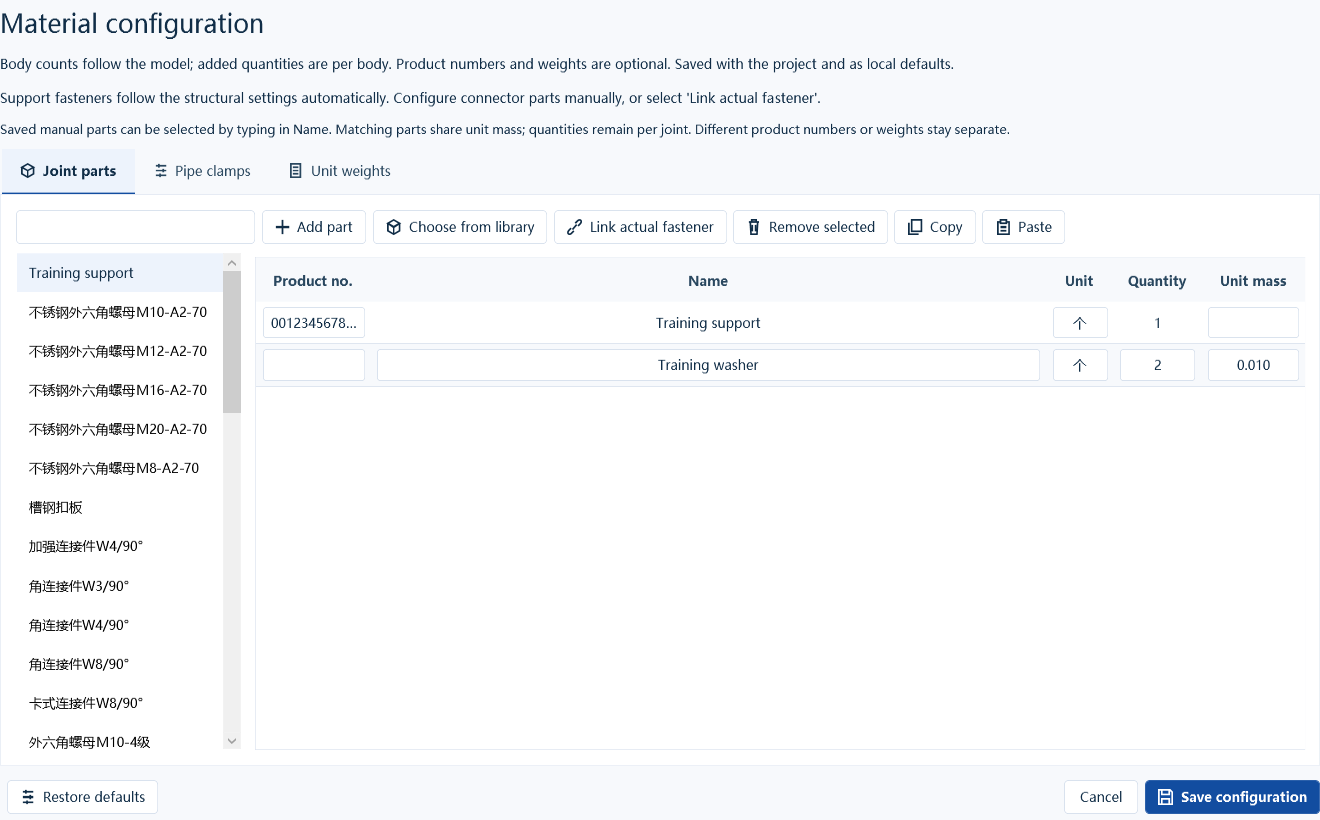

Inspect Joint parts: each training support has two training washers.
CHECKQuantity means usage per body: two supports times two washers gives four. Do not multiply by load-case count.
View the actual interface and notes
STRUCTURE CUBE / V3.0.4REFERENCE CAPTURE

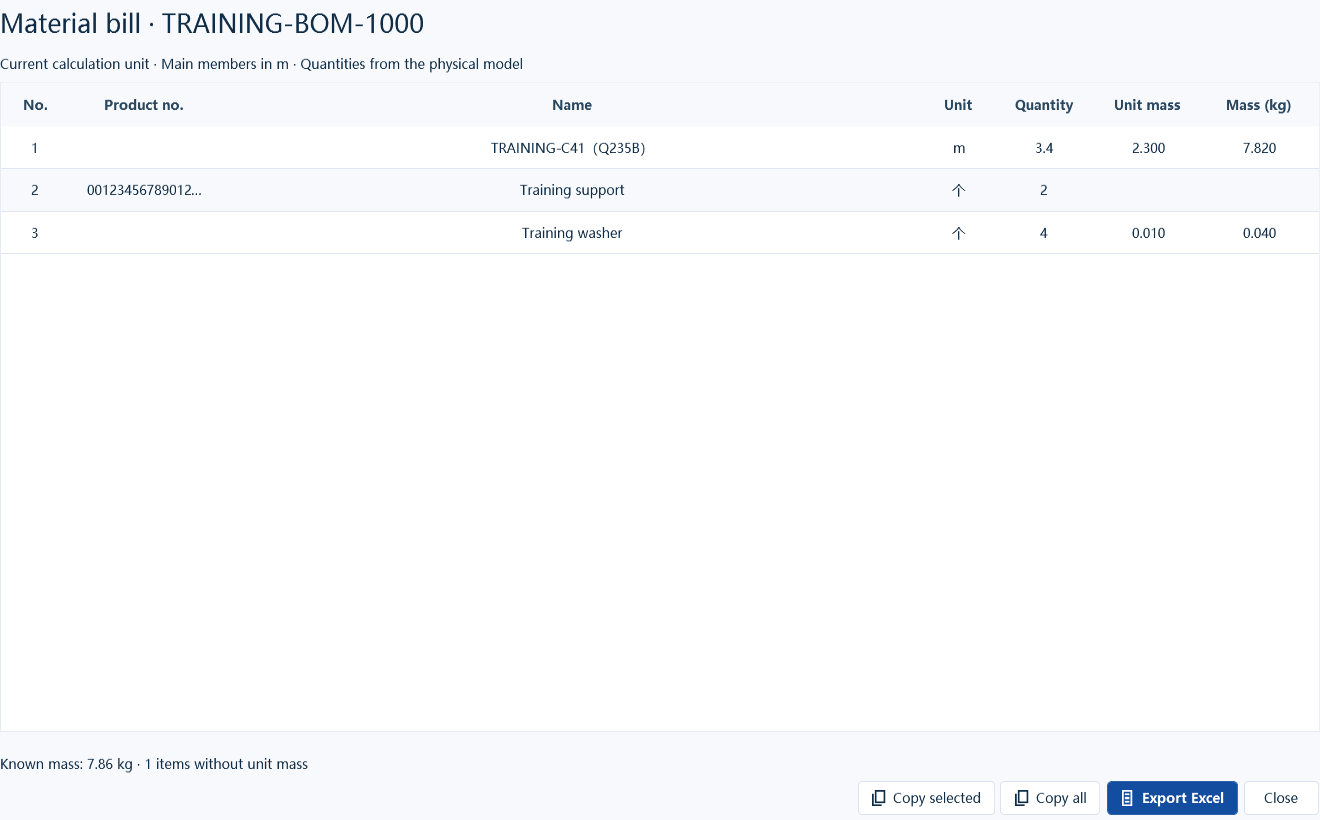

Generate the bill and verify member and joint quantities row by row.
CHECKCheck 3.4 m of members, two supports and four washers. Retain the leading zeros in 00123456789012345678.
View the actual interface and notes
STRUCTURE CUBE / V3.0.4REFERENCE CAPTURE
Leave the training support unit mass blank and inspect missing weights and known mass.
CHECKSupport quantity remains two, with blank unit mass and row mass, not zero. Known mass is not a complete total.
Change beam span to 1200 mm, commit the edit and regenerate; compare with the supplied variant.
CHECKThe regenerated length is 3.6 m and washers remain four. Old bill windows and Excel files do not update live.
Export Excel, save the project, reopen it and regenerate for a final comparison.
CHECKProduct numbers are text, quantities and masses numeric, missing weights blank. Workbook headers currently remain Chinese. Reopen and verify scope and configuration again.
REPEAT / CHECK / EXPLAIN
Repeat independently, without the prompts.
For self-review on this page only; not saved after leaving and not engineering approval or training certification.
Scope, cautions and knowledge references
Saving configuration in its editor changes defaults for later local projects. The training generator itself does not read or write product libraries or local defaults. Inspect the supplied recipe without saving it; record existing defaults before editing. Bill generation establishes neither structural safety nor complete purchasing scope.
Acceptance: 3.4 m changes to 3.6 m, washers stay at four and missing-mass rows retain quantities. No structural safety check is performed by this exercise.
